/Epoxy Resin Amorphous Toroidal Core 464

High permeability Amorphous toroidal core for fire safety

Epoxy Resin Amorphous Toroidal Core 464

Epoxy resin amorphous toroidal core and c cut core for common mode choke, transformer and other electronic component. We provide one-stand solution services, please feel free to contact us.

Brand:
SAT
Item NO.:
SATOGP-12.8x9.5x3.2-464
Order(MOQ):
3000
Payment:
EXW
Product Origin:
China
Color:
Customized
Shipping Port:
Shenzhen/ Huizhou/ Hongkong
Lead Time：
7-15 Days

Inquire Now

Product Detail

SAT Epoxy Resin Amorphous Toroidal Core

SAT epoxy resin amorphous toroidal cores are the suitable material for power transformer and inductor, choke coil and sensor, especially used in tough working situation and high-frequency range.SAT epoxy resin amorphous toroidal cores contribute to make components smaller, reduce the install space, improve energy switching efficiency in varieties of industries such as automobile, fire safety and component manufacturing.

The Specification of Epoxy Resin Magnetic Toroidal Cores

Core design	Toroidal core
Core for common mode choke	12.89.53.2
Nominal Dimensions	12.8x9.5x3.2mm
Core Material	SATG1K101
Type of Finish	Plastic box / silicon rubber
Rated Dimensions	Afe=0.043cm² lFe=3.5cm mFe=1.15g
Final Inspection	Magnetical Test Measurement at room temperature (AQL 0,65) Inductance test without DC-magnetisation
Final Inspection	7.1.Measurement of core losses according to MATS-2010A Setting values: B=400mT F=50KHz Specified value: pFe≤120W/kg 7.2. Measurement of flux density swing from residual flux density into saturation with unipolar rectangular voltage pulses, constant field strength amplitude. Setting values: td=20 µs, fP=1 kHz H=2A/cm Specified value Br/Bs ≥0.8

SAT Epoxy Resin Amorphous Toroidal Core

Epoxy Resin Amorphous Toroidal Core Features:

1. 70% lower core loss compared to ferrite and silicon steel cores.
2. Lower hysteresis and eddy current losses, higher permeability.
3. Better overload capacity.
4. Environment friendly, lower carbon dioxide emission due to the lower demand in generation.
5. Lower total cost of manufacturing due to the SAT Zero-Waste Eco Technology.
6. Short circuit strength increasing due to the tape-wound construction.
7. Smaller size, easier to assemble and repair.

Please leave a message below for more details of amorphous toroidal cores and c cores product information.

Related Tags : Amorphous toroidal transformer core Epoxy coating amorphous toroid transformer core Epoxy coating nanocrystalline toroid transformer core cores electrical current transformers isolating transformers

Leave A Message

Next :Epoxy Resin Amorphous Toroidal Core 535

New Products

Related Products

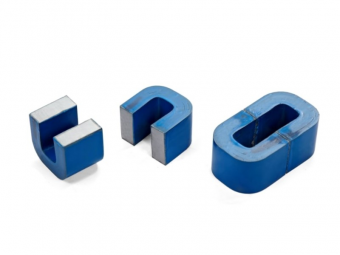

Amorphous C Cut Core 16A
